Powder Coating –
Example Technical Data for the Admixture...
AVALABLE IN DIFFERENT VERSIONS :
Based on Chemical Nanotechnology, I-Cannano’s Powders can be used for the most demanding of applications.Highly durable, high water repellent,UV resistant, fungus/algae/bateria resistant, and thermally insulating , extremely anti-corrosive (7,500 salt spray hours), ideal for all types of industrial use or problematic surfaces.
- Pure Epoxy Powder Coating – Matt Finish
- Hybrid Powder Coating Glossy & Semi Gloss Finish
- Pure Polyster Powder Coating- Glossy & Semi Gloss Finish
- Structure Finish (hybrid) Powder Coating
- Texture Finish (hybrid) Powder Coating
- Metallic Finish (hybrid) Powder Coating
- Antique Finish (hybrid) Powder Coating
Product Name : Powder Coating
Type:
- Hybrid glossy coating.
- Hybrid semi-glossy coating.
- Pure polyester coating.
- Pure epoxy coating
Appearance : Free from Lumps & Grit
Curing Temperature :
- For No.1) 80 c for 15 minutes..
- For No. 2) 200 c for 10 minutes..
- For No. 3)200 c for 10 minutes..
- For No. 4) 200 c for 10 minutes.
Gloss at 60:
- For No.1) Above 90%.
- For No. 2) within 30 – 50 %
- For No.3) Above 90%.
- For No. 4) within 8 – 10 %
Impact direct & reverse @ (50 – 60 micron)
- For No.1) 150 Kg.
- For No. 2) 100Kg.cm
- For No.3) 150 Kg.cm
- For No. 4) 60 Kg.cm
Specific Gravity : (1.52 – 1.60) kg/Lt.
Scratch & hardness : Passes 3 kg for all items
Salt Spray : Passes 800 Hrs for 1 2 & 4, passes 1000 Hrs for item 3
Flexibility & adhesion : Pass 1/4 inch mandrel
Storage stability : Six month from the date of M.F.G To be kept in 30c & free from lumps.

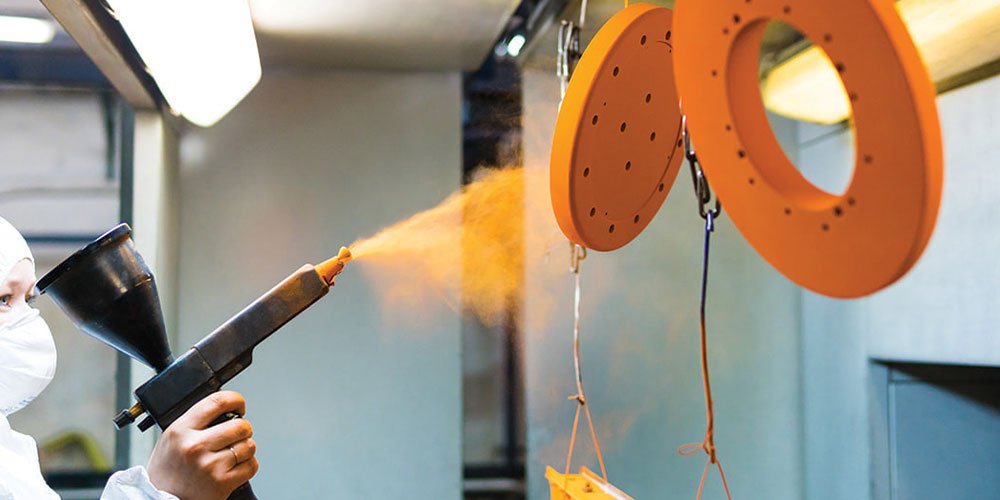

Application : By electrostatic spray gun.
